- Proline Promag 10D
-
- Easy, fast centering of the sensor
-
High degree of accuracy and measuring stability
-
No pressure loss, thus energy-saving
Specs at a glance
Function Continuous flow measurement Flow measurement up to 10 m/s (26.4 gal/min) Minimum conductivity ≥50 µS/cm Fluid temperature up to +60 °C (140 °F) Lining material Polyamide Process pressure up to 16 bar (232 psi) Wafer versions (with mounting kit)
Product / Version Price / pcs. in EUR Order code Power Supply; Display Diameter 1 to 3 4 to 10 11+ 85-250VAC; 2-line, push buttons DN25 755,- 702,- 665,- 10D25-xCGA1AA0A4AA+M1 DN40 755,- 702,- 665,- 10D40-xCGA1AA0A4AA+M1 DN50 755,- 702,- 665,- 10D50-xCGA1AA0A4AA+M1 DN65 810,- 753,- 713,- 10D65-xCGA1AA0A4AA+M1 DN80 810,- 753,- 713,- 10D80-xCGA1AA0A4AA+M1 DN100 859,- 798,- 755,- 10D1H-xCGA1AA0A4AA+M1 20-28VAC / 11-40VDC; 2-line, push buttons DN25 755,- 702,- 665,- 10D25-xCGA1AA0A5AA+M1 DN40 755,- 702,- 665,- 10D40-xCGA1AA0A5AA+M1 DN50 755,- 702,- 665,- 10D50-xCGA1AA0A5AA+M1 DN65 810,- 753,- 713,- 10D65-xCGA1AA0A5AA+M1 DN80 810,- 753,- 713,- 10D80-xCGA1AA0A5AA+M1 DN100 859,- 798,- 755,- 10D1H-xCGA1AA0A5AA+M1 Version with threaded connections
Product / Version Price / pcs. in EUR Order code Power Supply; Display Diameter 1 to 3 4 to 10 11+ 85-250VAC; 2-line, push buttons DN25 737,- 685,- 648,- 10D25-xUGA1AA0A4AA DN40 737,- 685,- 648,- 10D40-xUGA1AA0A4AA DN50 737,- 685,- 648,- 10D50-xUGA1AA0A4AA 20-28VAC / 11-40VDC; 2-line, push buttons DN25 737,- 685,- 648,- 10D25-xUGA1AA0A5AA DN40 737,- 685,- 648,- 10D40-xUGA1AA0A5AA DN50 737,- 685,- 648,- 10D50-xUGA1AA0A5AA Prices valid until 31.12.2019 in EUR per unit (not including shipping and applicable sales tax). See
Endress+Hauser Terms and ConditionsIs this Promag electromagnetic flowmeter not the perfect match for your application?
People who bought this also watched
-
Application
Proline Promag 10D is an electromagnetic flowmeter for bidirectional measurement of conductive liquids. It is used for flow measurements in water or service water applications. Due to its easy installation and operation, its robust design and low price it can be used in applications where only limited principles could be used before. Drinking water approvals according to KTW/W270, WRAS BS 6920, ACS and NSF 61 are available.
Function
Following Faraday's law of magnetic induction, a voltage is induced in a conductor moving through a magnetic field. In the electromagnetic measuring principle, the flowing fluid is the moving conductor. By measuring the induced voltage, the flow velocity of the medium can be measured. The flow volume is calculated by means of the pipe cross-section area.

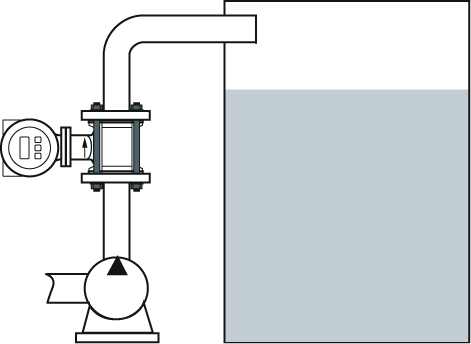

Application example
Proline Promag 10D for inflow measurement
-
Technical data
InputMeasuring ranges Typically v = 0.01 to 10 m/s (0.033 to 33 ft/s) with the specified accuracy Output signalCurrent output Active: 4 to 20 mA, RL < 700 Ω (for HART®: ≥ 250 Ω) Pulse/status output Passive: 30 V DC/250 mA; Open Collector Power supplySupply voltage 85 to 250 V AC, 45 to 65 Hz;
20 to 28 V AC, 45 to 65 Hz;
11 to 40 V DC
Power consumption (incl. sensor) 85 to 250 V AC: < 12 VA;
20 to 28 V AC: < 8 VA;
11 to 40 V DC: < 6 W
AccuracyReference operating conditions as per DIN EN 29104 and VDI/VDE 2641 Fluid temperature +28 °C ±2 K (+82 °F ± 2 K) Ambient temperature +22 °C ±2 K (+72 °F ± 2 K) Maximum measured error (Current output) ±0.5 % of full scale value add. typically ±5 μA Maximum measured error (Pulse output) ±0.5 % of reading ±2 mm/s Repeatability Max. ±0.2 % o.r. ±2 mm/s (o.r. = of reading) Inlet and outlet runIf possible, install the sensor well clear of assemblies such as valves, T-pieces, elbows, etc. Inlet run ≥5 × DN Outlet run ≥2 × DN Operating conditions: EnvironmentAmbient temperature –20 to +60 °C (–4 to +140 °F) Storage temperature –20 to +60 °C (–4 to +140 °F) Degree of protection IP 67 (NEMA 4X) for transmitter and sensor Shock and vibration resistance Acceleration up to 2 g following IEC 600 68-2-6 EMC As per IEC/EN 61326 and NAMUR Recommendation NE 21; Emission: to limit value for industry EN 55011 Operating conditions: ProcessMedium temperature 0 to +60 °C (32 to 140 °F) Minimum conductivity ≥50 μS/cm Medium pressure PN16 Pressure tightness Measuring tube: 0 mbar abs (0 psi abs) with a fluid temperature of ≤60 °C (≤140 °F) MaterialGround disks 1.4301/304 Sensor housing powder-coated die-cast aluminum Measuring tube polyamide, O-rings: EPDM Electrodes 1.4435/316L Fitted electrodes Two electrodes made of 1.4435/316L Mounting kitIncluded for wafer version Contents Mounting bolts, seals, nuts, washers and flange seals Human interfaceDisplay elements Liquid crystal display: unilluminated, two-line, 16 characters per line Display Display (operating mode) preconfigured: volume flow and totalizer status Operating elements Local operation via three keys Remote operation Operation via HART® protocol and FieldCare ApprovalsDrinking water approval WRAS BS 6920 Dimensions (in mm)

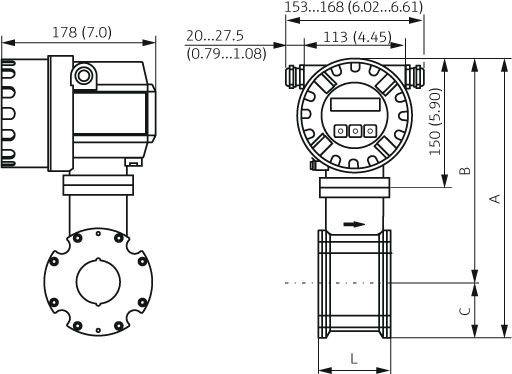

Compact version Promag D as wafer version
Installation according to operation instructions
Compact version Promag D with threaded connection
Installation according to operation instructions
DN L A B C Weight EN (DIN)/JIS [mm] ANSI [inch] [mm (inch)] [mm (inch)] [mm (inch)] [mm (inch)] [kg (lbs)] 25 1" 55 (2.17) 283 (11.1) 240 (9.45) 43 (1.69) 2.9 (6.4) 40 1 ½" 69 (2.72) 303 (11.9) 251 (9.88) 52 (2.05) 3.5 (7.7) 50 2" 83 (3.27) 324 (12.8) 262 (10.3) 62 (2.44) 4.3 (9.5) 65 - 93 342 272 70 5.1 (11.3) 80 3" 117 (4.61) 351 (13.8) 276 (10.9) 75 (2.95) 6.1 (13.5) 100 4" 148 (5.83) 379 (14.9) 290 (11.4) 89 (3.50) 8.8 (19.4) Compact version Promag D with threaded connection
Installation according to operation instructions

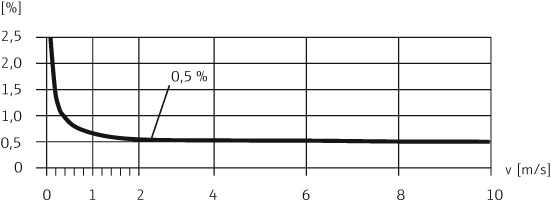

DN E G H J Weight EN (DIN)/JIS [mm] ANSI [inch] [mm (inch)] [mm (inch)] [mm (inch)] [mm (inch)] [kg (lbs)] 25 1" 110 (4.33) 240 (9.45) 43 (1.69) 283 (11.1) 2.9 (6.4) 40 1 ½" 140 (5.51) 251 (9.88) 52 (2.05) 303 (11.9) 3.5 (7.7) 50 2" 200 (7.87) 262 (10.3) 62 (2.44) 324 (12.8) 4.3 (9.5) Maximum measured error
Max. measured error in % of reading
Fluctuations in the supply voltage do not have any effect within the specified range.

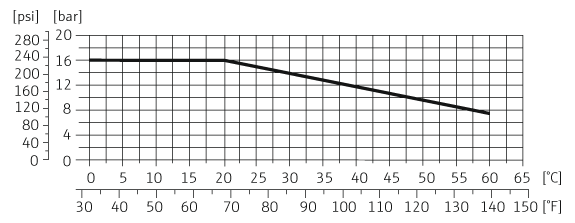

Pressure-temperature ratings
Permitted process pressure
Flow characteristic values [SI units (US units)]
Diameter Recommended flow Factory settings [mm] [in.] min./max. full scale value
(v ~ 0.3 or 10 m/s)Full scale value current output
(v ~ 2.5 m/s)Pulse value
(~ 2 Pulse/s)Low flow cut off
(v ~ 0.04 m/s)25 1” 9 to 300 dm³/min
(2.5 to 80 gal/min)75 dm³/min
(18 gal/min)0.50 dm³
(0.20 gal)1 dm³/min
(0.25 gal/min)40 1 ½” 25 to 700 dm³/min
(7 to 190 gal/min)200 dm³/min
(50 gal/min)1.50 dm³
(0.50 gal)3 dm³/min
(0.75 gal/min)50 2” 35 to 1100 dm³/min
(10 to 300 gal/min)300 dm³/min
(75 gal/min)2.50 dm³
(0.50 gal)5 dm³/min
(1.25 gal/min)65 - 60 to 2000 dm³/min
(16 to 500 gal/min)500 dm³/min
(130 gal/min)5.00 dm³
(1.00 gal)8 dm³/min
(2 gal/min)80 3” 90 to 3000 dm³/min
(24 to 800 gal/min)750 dm³/min
(200 gal/min)5.00 dm³
(2.00 gal)12 dm³/min
(2.5 gal/min)100 4” 145 to 4700 dm³/min
(40 to 1250 gal/min)1200 dm³/min
(300 gal/min)10.00 dm³
(2.00 gal)20 dm³/min
(4 gal/min)Electrical connection
Connecting the transmitter, cable cross-section max. 2.5 mm²
a Electronics compartment cover
b Power supply cable
c Ground terminal for protective ground
d Terminal connector for power supply cable
e Signal cable
f Ground terminal for signal cable
g Terminal connector for signal cable
h Service connector
i Ground terminal for potential equalization
Terminal No.:- 24 (+)/25 (–) = Pulse/status output
- 26 (+)/27 (–) = HART® current output
Functional values see "Output signal"
- 1 (L1/L+)/2 (N/L–) = Power supply
Functional values see "Supply voltage"
-
