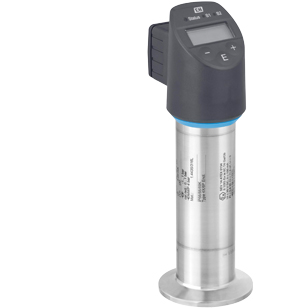

Hygienic pressure switch for absolute and gauge pressures
A3IOLINK

Pressure switch for measurement and monitoring of absolute and gauge pressure for hygienic processes

Ceraphant PTP33B

from €240.-
Need help?

Linha de atendimento
+351 212 388 403

    • High reproducibility and long-term stability
    • Customized measuring ranges
    • Flexible process integration thanks to modular connections

    Specs at a glance

    Product Gases, vapors, liquids and dust
    Measuring ranges From 0 to +400 mbar (0 to +6 psi) to
    0 to +40 bar (0 to +600 psi)
    Accuracy Standard: ±0.5 %;
    Platinum: ±0.3 %
    Filling oil in accordance with FDA
    Process temperature –10 to +100 °C (+14 to +212 °F),
    +135 °C (+275 °F) for one hour maximum
    Outputs 1 × PNP, 2 × PNP,
    1 × PNP + 4 to 20 mA,
    1 × PNP + 4 to 20 mA, IO-Link

    Ceraphant PTP33B - Reference Accuracy : 0.5%

    Product / VersionPrice / pcs. in EUROrder code
    OutputProcess ConnectionElectrical Connection1 to 34 to 1011+
    PNP, 3-wiresTri-Clamp ISO2852 DN25-38 (1-1/2") DIN32676 DN25-38, EHEDG, 3AM12 / ISO4400293,-264,-240,- PTP33B-AA4xxxGB3CJ
    Select options
    Thread M24, 316L, seal EPDM, 3A, EHEDG / Thread M24, 316L, seal FKM, 3A, EHEDGM12 / ISO4400300,-270,-246,- PTP33B-AA4xxxGBxxx
    Select options
    Thread ISO228 G1 sealing metaljoint 316L, flush mount, adapter / Thread ISO228 G1 seal O-ring 316L, flush mount, adapter, 3A, EHEDGM12 / ISO4400304,-274,-250,- PTP33B-AA4xxxGBxxx
    Select options
    DIN11851 / Clamp / Tri-Clamp / VariventM12 / ISO4400340,-306,-278,- PTP33B-AA4xxxGBxxx
    Select options
    2x PNP, IO-Link, 4-wireTri-Clamp ISO2852 DN25-38 (1-1/2") DIN32676 DN25-38, EHEDG, 3APlug M12, IP65/67 NEMA Type 4X Encl.309,-278,-253,- PTP33B-AA8MxxGB3CJ
    Select options
    Thread M24, 316L, seal EPDM, 3A, EHEDG / Thread M24, 316L, seal FKM, 3A, EHEDGPlug M12, IP65/67 NEMA Type 4X Encl.316,-284,-259,- PTP33B-AA8MxxGBxxx
    Select options
    Thread ISO228 G1 sealing metaljoint 316L, flush mount, adapter / Thread ISO228 G1 seal O-ring 316L, flush mount, adapter, 3A, EHEDGPlug M12, IP65/67 NEMA Type 4X Encl.320,-288,-263,- PTP33B-AA8MxxGBxxx
    Select options
    DIN11851 / Clamp / Tri-Clamp / VariventPlug M12, IP65/67 NEMA Type 4X Encl.356,-320,-292,- PTP33B-AA8MxxGBxxx
    Select options
    PNP + 4-20mA, IO-Link, 4-wireTri-Clamp ISO2852 DN25-38 (1-1/2") DIN32676 DN25-38, EHEDG, 3APlug M12, IP65/67 NEMA Type 4X Encl.344,-309,-282,- PTP33B-AA7MxxGB3CJ
    Select options
    Thread M24, 316L, seal EPDM, 3A, EHEDG / Thread M24, 316L, seal FKM, 3A, EHEDGPlug M12, IP65/67 NEMA Type 4X Encl.351,-316,-288,- PTP33B-AA7MxxGBxxx
    Select options
    Thread ISO228 G1 sealing metaljoint 316L, flush mount, adapter / Thread ISO228 G1 seal O-ring 316L, flush mount, adapter, 3A, EHEDGPlug M12, IP65/67 NEMA Type 4X Encl.355,-320,-291,- PTP33B-AA7MxxGBxxx
    Select options
    DIN11851 / Clamp / Tri-Clamp / VariventPlug M12, IP65/67 NEMA Type 4X Encl.391,-351,-320,- PTP33B-AA7MxxGBxxx
    Select options

    Ceraphant PTP33B - Reference Accuracy : 0.3%

    Product / VersionPrice / pcs. in EUROrder code
    OutputProcess ConnectionElectrical Connection1 to 34 to 1011+
    PNP, 3-wiresTri-Clamp ISO2852 DN25-38 (1-1/2") DIN32676 DN25-38, EHEDG, 3AM12 / ISO4400325,-292,-266,- PTP33B-AA4xxxDB3CJ
    Select options
    Thread M24, 316L, seal EPDM, 3A, EHEDG / Thread M24, 316L, seal FKM, 3A, EHEDGM12 / ISO4400332,-298,-272,- PTP33B-AA4xxxDBxxx
    Select options
    Thread ISO228 G1 sealing metaljoint 316L, flush mount, adapter / Thread ISO228 G1 seal O-ring 316L, flush mount, adapter, 3A, EHEDGM12 / ISO4400336,-302,-276,- PTP33B-AA4xxxDBxxx
    Select options
    DIN11851 / Clamp / Tri-Clamp / VariventM12 / ISO4400371,-334,-304,- PTP33B-AA4xxxDBxxx
    Select options
    2x PNP, IO-Link, 4-wireTri-Clamp ISO2852 DN25-38 (1-1/2") DIN32676 DN25-38, EHEDG, 3APlug M12, IP65/67 NEMA Type 4X Encl.341,-307,-279,- PTP33B-AA8MxxDB3CJ
    Select options
    Thread M24, 316L, seal EPDM, 3A, EHEDG / Thread M24, 316L, seal FKM, 3A, EHEDGPlug M12, IP65/67 NEMA Type 4X Encl.347,-313,-285,- PTP33B-AA8MxxDBxxx
    Select options
    Thread ISO228 G1 sealing metaljoint 316L, flush mount, adapter / Thread ISO228 G1 seal O-ring 316L, flush mount, adapter, 3A, EHEDGPlug M12, IP65/67 NEMA Type 4X Encl.352,-317,-289,- PTP33B-AA8MxxDBxxx
    Select options
    DIN11851 / Clamp / Tri-Clamp / VariventPlug M12, IP65/67 NEMA Type 4X Encl.387,-349,-318,- PTP33B-AA8MxxDBxxx
    Select options
    PNP + 4-20mA, IO-Link, 4-wireTri-Clamp ISO2852 DN25-38 (1-1/2") DIN32676 DN25-38, EHEDG, 3APlug M12, IP65/67 NEMA Type 4X Encl.376,-338,-308,- PTP33B-AA7MxxDB3CJ
    Select options
    Thread M24, 316L, seal EPDM, 3A, EHEDG / Thread M24, 316L, seal FKM, 3A, EHEDGPlug M12, IP65/67 NEMA Type 4X Encl.382,-344,-314,- PTP33B-AA7MxxDBxxx
    Select options
    Thread ISO228 G1 sealing metaljoint 316L, flush mount, adapter / Thread ISO228 G1 seal O-ring 316L, flush mount, adapter, 3A, EHEDGPlug M12, IP65/67 NEMA Type 4X Encl.387,-348,-317,- PTP33B-AA7MxxDBxxx
    Select options
    DIN11851 / Clamp / Tri-Clamp / VariventPlug M12, IP65/67 NEMA Type 4X Encl.422,-380,-346,- PTP33B-AA7MxxDBxxx
    Select options

    Accessories

    Product / VersionPrice / pcs. in EUROrder code
    Weld-in adapter G1, 316L Flush mount process connection. Material: 316L. Usage: PMP23, PMP51, PMP135, PTP33B/PTP35. Correct installation only with dummy.74,78 52005087
    Add to cart
    Weld-in adapter G1, 316L, 3.1 Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Usage: PMP23, PMP51, PMP135, PTP33B/PTP35. Correct installation only with dummy.125,30 52010171
    Add to cart
    Weld-in adapter G1, d=60, 316L Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.38,86 52001051
    Add to cart
    Weld-in adapter G1, d=60, 316L, 3.1 Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.137,45 52011896
    Add to cart
    Socket for plug 4p-125V, 4A-M12 M12 socket for plug. Self confectionery connection. Usage: plug M12.15,55 52006263
    Add to cart
    Cable 4x0.34, box M12,Cu Sn/Ni,90o,L=5m M12 plug connector. 5m cable PVC, Cu Sn/Ni lock. Usage: FMB50/FMB51/FMB52/FMB53, FTL31/FTL33, FTW23, FTW33, PMC11, PMC21, PMC51, PMP11, PMP21/PMP23, PMP51/PMP55, PTC31B, PTP31B/PTP33B.7,25 52010285
    Add to cart
    Plug connector M12 90deg Self confectionery connection. Usage: plug M12.25,41 71114212
    Add to cart

    Prices valid until 31.12.2019 in EUR per unit (not including shipping and applicable sales tax). See
    Endress+Hauser Terms and Conditions

    People who bought this also watched

    Liquiphant FTL33
    Liquiphant FTL33 >>>

    Liquipoint FTW33
    Liquipoint FTW33 >>>

    Cerabar PMP23
    Cerabar PMP23 >>>

  • Application

    The Ceraphant is a pressure switch for the measurement of absolute and gauge pressure in gases, vapors, liquids and dust for applications with hygienic requirements. The Ceraphant can be used internationally thanks to a wide range of approvals and process connections.

    Function

    The process pressure deflects the metal process isolating diaphragm of the switch and a fill fluid transfers the pressure to a Wheatstone bridge (semiconductor technology). The pressure-dependent change in the bridge output voltage is measured and evaluated.

    Application Example

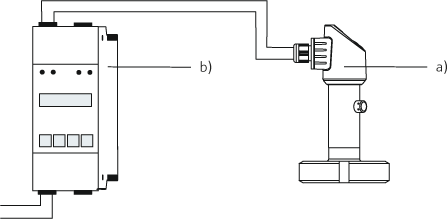

    Hygienic pressure switch - Application example

    Pressure switch Ceraphant PTP33B with 1 × PNP switch output (b) with RMA42 / RIA45 (a) from E-direct

  • Technical data

    Output
    Output signal PNP switch output + 4 to 20 mA output (four-wire), IO-Link;
    PNP switch output (3-wire);
    2 × PNP switch output (4-wire), IO-Link
    Signal range
    4 to 20 mA    		 3.8 mA to 20.5 mA
    Voltage drop PNP ≤2 V
    Load
    4 to 20 mA    		 RLmax ≤ (UB – 6.5 V) / 23 mA 1)
    Dynamic behavior Time constant (T90) 16 ms
    1) RLmax: maximum load resistance; UB: supply voltage
    Power supply
    Supply voltage

    10 to 30 V DC

    IO-Link :18 to 30 V DC
    Current consumption ≤60 mA
    Degree of protection – Cable: IP66/67 NEMA Type 4X/6P
    – Plug M12: IP65/67 NEMA Type 4X
    – Valve plug: IP65 NEMA Type 4X
    Influence of power
    supply    		 ≤0.005 % of URL/1 V
    Residual ripple ±5 %
    Performance characteristics
    Reference accuracy

    Standard: ±0.5 %;

    Platinum: ±0.3 %
    Thermal change of
    the zero output and
    the output span

    <1 bar: <1.2 %;

    ≥1 bar: <1 %
    Long-term stability

    1 year: ±0.2 %;

    5 years: ±0.4 %
    Switch-on time ≤2 s
    Environment
    Ambient temperature –20 to +70 °C (–4 to +158 °F)
    Storage temperature –40 to +85 °C (–40 to +185 °F)
    Climate class Class 3K5
    Electromagnetic
    compatibility    		 – Interference emission as per EN 61326 equipment B
    – Interference immunity as per EN 61326 appendix A (industrial sector)
    – NAMUR recommendation EMC (NE21)
    Process
    Process temperature –10 to +100 °C (+14 to +212 °F)
    Sterilization in place (SIP) at +135°C (+275 °F) for a maximum of one hour
    Materials
    Materials not in
    contact with process    		 Housing: Stainless steel 316L
    Filling oil: NSF-H1 synthetic oil in accordance with FDA 21 CFR 178.3570
    Materials in
    contact with process    		 Process connections: 316L
    metal process isolating diaphragm: AISI 316L
    TSE Certificate of Suitability for all device components in contact with the process
    Operability
    Operation with local
    display    		 4-digit measured value display, simple and complete menu guidance, comprehensive diagnostic functions, status via LEDs
    IO Link Operator-oriented menu structure for user-specific tasks
    Approvals
    3-A, EHEDG, EC1935/2004
    Pressure Equipment Directive

    Dimensions (in mm)

    Housing

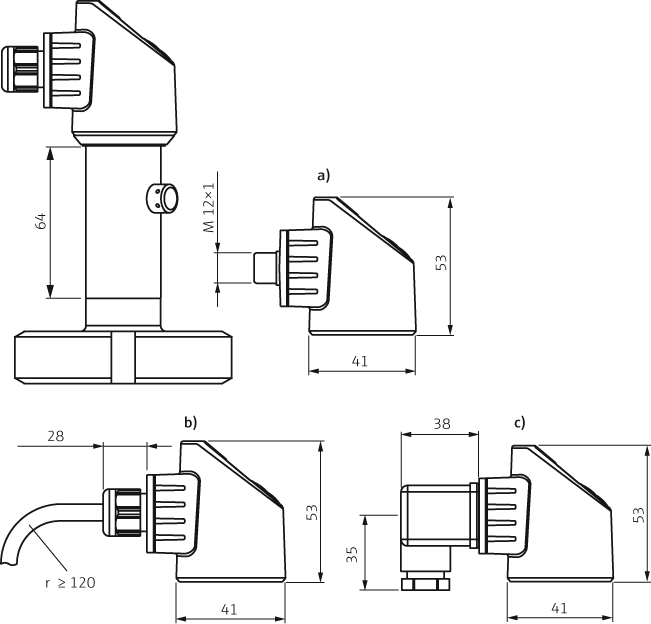

    Hygienic pressure switch - Dimensions

    a) M12 plug, housing cap made of plastic

    b) Cable

    c) M16 valve plug



    Installation according to instruction manual.

    Process connections with flush-mounted, metal process isolating diaphragm

    a) Thread ISO 228 G 1" Metal joint

    b) Thread ISO 228 G 1" O-ring seal

    c) Thread M24×1,5

    Hygienic connections

    a) DIN 11851 DN 25

    b) DIN 11851 DN 40

    c) DIN 11851 DN 50

    d) SMS 1½"

    e) Clamp ISO 2852 DN 22

    f) Tri-Clamp ISO 2852 DN 25 – DN 38

    g) Tri-Clamp ISO 2852 DN 40 – DN 51

    h) Varivent F pipe DN25-32

    i) Varivent N pipe DN40-162

    Electrical connection

    1 × PNP switch output R1

    Hygienic pressure switch - Connecting

    a) M12 plug

    b) Valve plug

    c) Cable:

    1:   brown = L+
    2a: black = switch output 1
    2b: white = analog output 4 to 20 mA
    3:   blue = L–
    4:   green/yellow = ground
    (a): reference air hose

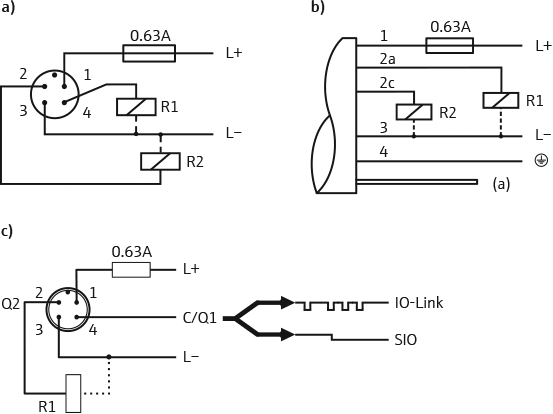

    2 × PNP switch outputs R1 and R2

    a) M12 plug

    b) Cable:

    1:   brown = L+
    2a: black = switch output 1
    2b: white = analog output 4 to 20 mA
    3:   blue = L–
    4:   green/yellow = ground
    (a): reference air hose

    c) M12 plug, IO-Link

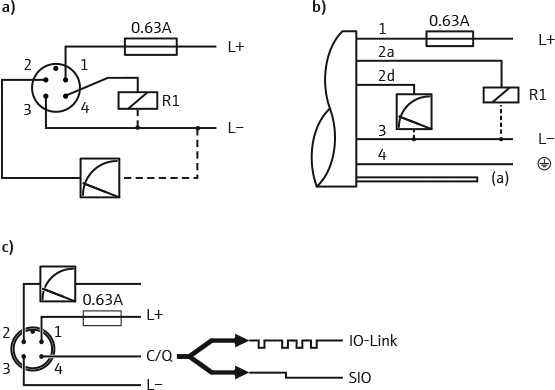

    1 × PNP switch output R1 with additional analog output 4 to 20 mA (active)

    a) M12 plug

    b) Cable:

    1: brown = L+
    2a: black = switch output 1
    2b: white = analog output 4 to 20 mA
    3: blue = L–
    4: green/yellow = ground
    (a): reference air hose

    c) M12 plug, IO-Link

  • More documents for PTP33B

  • IO-Link

    Besides its general benefits, summarized below, using IO-Link point-to-point communication with our hygienic pressure switch
    Ceraphant PTP33B allows:

    • Commissioning via software

    • Storage of the configuration

    • Configuration transferable to several devices



    General benefits of IO-Link

    Digital measured values:

    • Faultless transmission (e.g. EMC caused)

    • No conversion, thus a higher total accuracy



    More data

    • Possibility to carry more values

    • Detailed fault information

    • Additional process information



    Central parameters storage

    • Possibility to load set up parameters from the master into a device

    • Configuration can be duplicated from one device to the next

    • Remote sensor maintenance

  • Previous model: PTP35
