Temperature sensor with screw thread for simple applications

Temperature sensor with screw thread for simple applications

Omnigrad T TST487

from €46.-
Need help?

Linha de atendimento
+351 212 388 403

    • Class A sensor

    • Fiberglass insulated inset

    • ⌀ 6 mm (⌀ 0.24") protecting tube

    Specs at a glance

    Temperature range -50 to +300 °C
    Tolerance Pt100 Class A
    Immersion length (diameter)

    50/100/150/250 mm (⌀ 6 mm)

    (2"/3.9"/5.9"/9.8" (⌀ 0.24"))

    Response time ≤3.5 s (T50); ≤8 s (T90)
    Product / VersionPrice / pcs. in EUROrder code
    Terminal TypeImmersion Length L1 to 34 to 1011+
    Flying leads50 mm56,-50,-46,- TST487-1A2A
    100 mm56,-50,-46,- TST487-1A2B
    150 mm60,-54,-49,- TST487-1A2C
    250 mm60,-54,-49,- TST487-1A2D
    Terminalblock50 mm65,-58,-53,- TST487-1A3A
    100 mm65,-58,-53,- TST487-1A3B
    150 mm68,-61,-56,- TST487-1A3C
    250 mm68,-61,-56,- TST487-1A3D

    Prices valid until 31.12.2019 in EUR per unit (not including shipping and applicable sales tax). See
    Endress+Hauser Terms and Conditions

    Is this temperature sensor not the perfect match for your application?

  • Application

    The Omnigrad T TST487 is a general purpose RTD thermometer particularly suited to many light and medium duty applications either in vessels or pipes. It can be applied where pressure and temperature are not extreme and where the performance/cost ratio is very important.


    The Omnigrad T TST487 RTD thermometer assembly includes a single Pt100 insulated probe and a terminal head. The process connection is threaded G ½".

    The inset is available either with flying leads for head transmitter mounting or with terminal block.

    Installation instructions

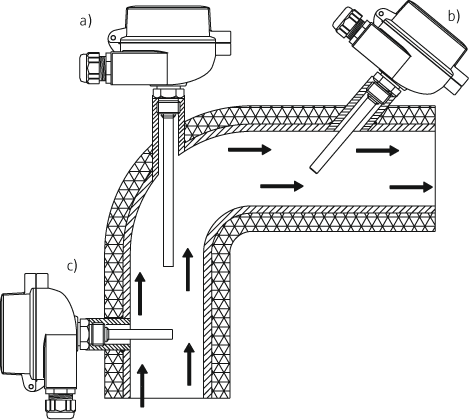

    Temperature sensor Omnigrad T TST487 - INstallation examples

    Pipe installation


    a) At elbows, against the flow

    b) In smaller pipes, leant against the flow

    c) Perpendicular to the flow

  • Technical data

    Sensing element Platinum resistance, 1 × Pt100 (100 Ω at 0 °C)

    Class A acc. to IEC 751: –50 to +250 °C

    Class B acc. to IEC 751: 250 to 300°C

    Wiring Four-wire connection, fiberglass insulated cable
    Insulation resistance ≥100 MΩ, test voltage 250 V at ambient temperature
    Electrical connection Flying leads or terminal block
    Sheath diameter 6 mm (0.24")
    Operating temperature –50 to +300 °C (–58 to +572 °F)
    Sheath SS 316L/1.440 4
    Response time T50/3.5 s; T90/8 s; according to IEC 751, in moving water at 0.4 m/s
    Ambient temperature –40 to +100 °C (–40 to +212 °F)
    Process connection
    Material SS 316Ti/1.4571
    Connection G½"
    Terminal head
    Type DIN 43 729 form B
    Protection class IP 66/68
    Electrical connection M20×1.5, cable gland
    Material Aluminum, polyester powder coated

    Dimensions (in mm)

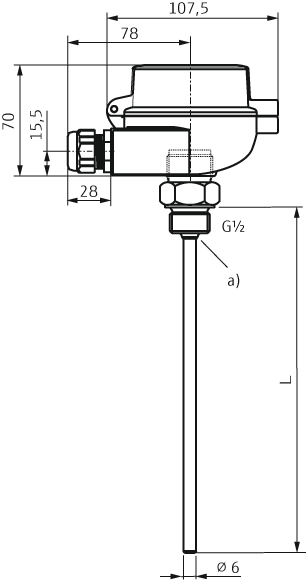

    Temperature sensor Omnigrad T TST487 - Dimensions

    a) welded

    L = Immersion length


    Installation according to operation instructions

    Electrical connection

    Terminal block

    Temperature sensor Omnigrad T TST487 - Wiring 1

    For direct cable connection


    a) red
    b) white

    Flying leads

    Temperature sensor Omnigrad T TST487 - Wiring 2

    For mounting of head transmitter


    a) red
    b) white

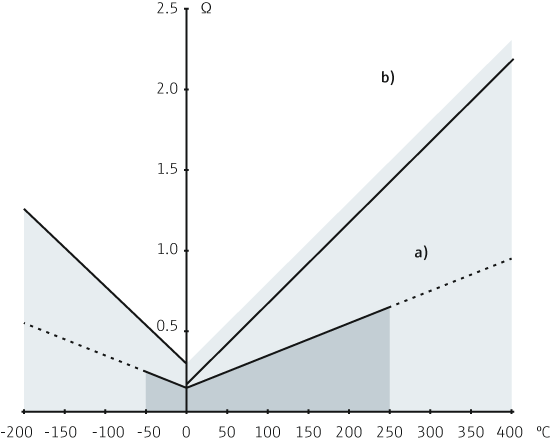

    Tolerance values

    a) Class A (°C)

    b) Class B (°C)
