Compact thermometer for simple applications

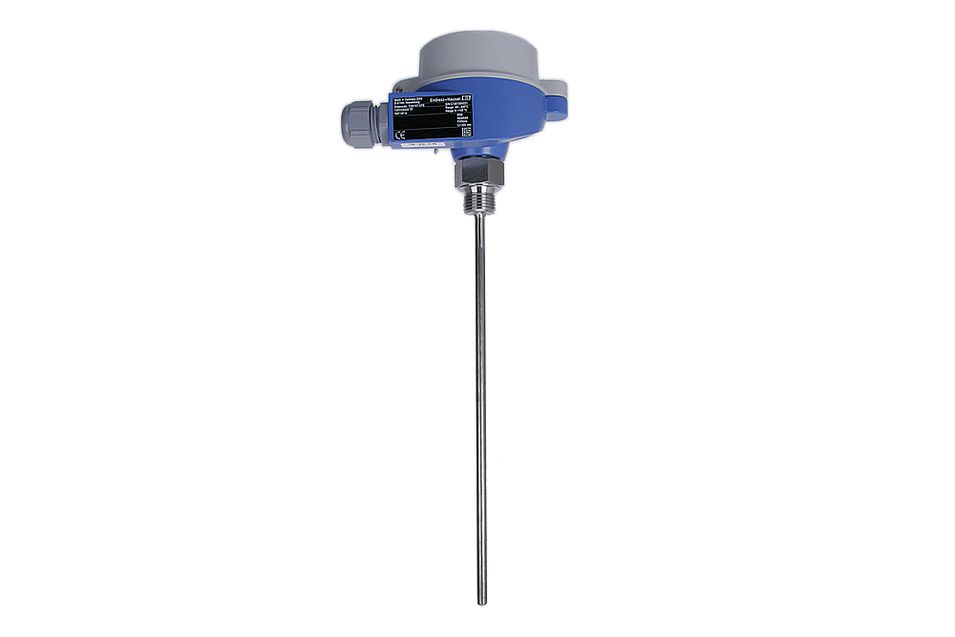

Easytemp TSM487
Linha de atendimento
+351 212 388 403
-
-
High accuracy in sensor and transmitter
-
Fiberglass insulated replaceable insert
-
Replaceable electronics
Specs at a glance
Immersion length (diameter) 50 / 100 / 150 / 250 mm (⌀ 6 mm)
(2 / 3.9 / 5.9 / 9.8 inch (⌀ 0.24")
Temperature range –30 to +170 °C (–22 to +338 °F),
0 to 100 °C (32 to 212 °F),
0 to 200 °C (32 to 392 °F)
Pressure 20 bar at +20 °C (290 PSI at +68 °F) Tolerance <0.08 %, Pt100 Class A Response time ≤3.5 s (T50), ≤8 s (T90) Product / Version Price / pcs. in EUR Order code Measuring Range Immersion Length L 1 to 3 4 to 10 11+ TMT187, 4-20mA -30..+170oC 50mm 158,- 142,- 130,- TSM487-ADD 100mm 158,- 142,- 130,- TSM487-BDD 150mm 161,- 145,- 132,- TSM487-CDD 250mm 162,- 146,- 133,- TSM487-DDD TMT187, 4-20mA 0..+100oC 50mm 158,- 142,- 130,- TSM487-AFE 100mm 158,- 142,- 130,- TSM487-BFE 150mm 161,- 145,- 132,- TSM487-CFE 250mm 162,- 146,- 133,- TSM487-DFE TMT187, 4-20mA 0..+200oC 50mm 158,- 142,- 130,- TSM487-AFH 100mm 158,- 142,- 130,- TSM487-BFH 150mm 161,- 145,- 132,- TSM487-CFH 250mm 162,- 146,- 133,- TSM487-DFH Prices valid until 31.12.2019 in EUR per unit (not including shipping and applicable sales tax). See
Endress+Hauser Terms and ConditionsIs this temperature sensor not the perfect match for your application?
People who bought this also watched
-
-
Application
The Easytemp TSM487 temperature compact thermometer is widely used in many light or medium duty applications either in vessels or in pipes with low pressures and no extreme temperatures.
Function
The fiber isolated inset sits in a protecting tube with process connection G ½" cable. The head transmitter (DIN 43729 form B) is made of aluminium. The integrated electronics convert the resistance value in a linearly temperature 4 to 20 mA signal.
Installation instructions
Pipe installation:
a) At elbows, against the flow
b) In smaller pipes, leant against the flow
c) Perpendicular to the flow
-
Technical data
SensorSensing element Platinum resistance, 1×Pt100 (100 Ω at 0 °C) Measurement range –30 to 170 °C (–22 to 338 °F),
0 to 100 °C (32 to 212 °F),
0 to 200 °C (32 to 392 °F)
Tolerance Class A acc. to IEC 751: –50 to +250 °C Wiring Four-wire connection, fiberglass insulated cable Insulation resistance ≥100 MΩ, test voltage 250 V at ambient temperature Maximum pressure 20 bar at 20 °C (290 PSI at +68 °F) Response time value T50/3.5 s; T90/8 s; according to IEC 751 Process connectionVersion DIN 43772 form 2G Connection G½", 1.4571/SS 316TI;
½" NPT-M, 1.4404/SS 316 L
Terminal headType DIN 43729 form B Protection class IP 66/68 Electrical connection M20×1.5 Material Aluminum, polyester powder coated Output (Transmitter, replaceable)Output signal 4 to 20 mA transmission is temperature linear, resistance linear Maximum load (Vpower supply – 8 V)/0.022 A Input current required ≤3.5 mA Current limit ≤23 mA Switch on delay 4 s (during power up Ia = 3.8 mA) Response time 1 s Signal on alarm (Transmitter, replaceable)Underranging Linear drop to 3.8 mA Overranging Linear rise to 20.5 mA Sensor breakage / Sensor short circuit ≥ 21.0 mA Electrical connection (Transmitter, replaceable)Power supply Ub = 8 to 35 V, polarity protected Galvanic isolation Û = 3.75 kV Allowable ripple Uss ≤ 5 V at Ub ≥ 13 V, fmax = 1 kHz Reference conditions Calibration temperature +23 °C (73 °F) ± 5 K (9 °F) Accuracy (Transmitter, replaceable)Influence of power supply ≤ ±0.01 %/V deviation from 24 V Load influence ≤ ±0.02 %/100 Ω Temperature drift Td = ±(15 ppm/K × max. meas. range + 50 ppm/K × preset meas. range) × Δθ Pt100 0.2 K or 0.08 % Operating conditions (Transmitter, replaceable)Ambient temperature –40 to +85 °C (–58 to +185 °F) Climatic class As per IEC 60 654-1, class C Vibration protection 4 g / 2 to 150 Hz according to IEC 60 068-2-6 EMC Shock resistance and interference emission as per IEC 61326 and NAMUR NE 21 Dimensions (in mm)
a) welded
L = Immersion length
Installation according to operation instructions
Electrical connection
Power supply and current output
-
